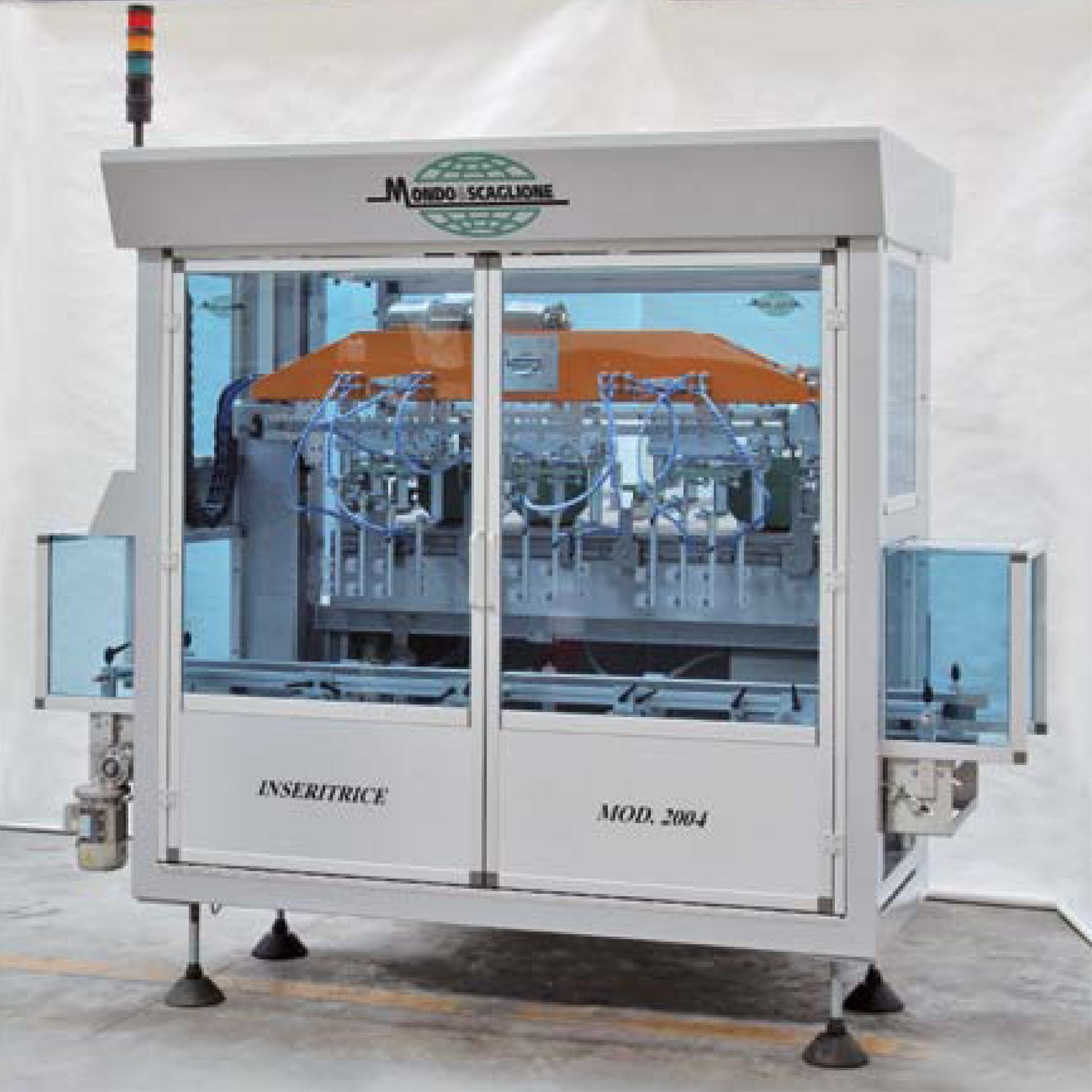

M&S Divisions Inserter 2004

From Mondo & Scaglione

Divisions’ magazine adjustable to different sizes and with a pitch-to-pitch movement according to division thickness.

• An electro-pneumatically controlled system compensates for the thickness difference between division center and ends.

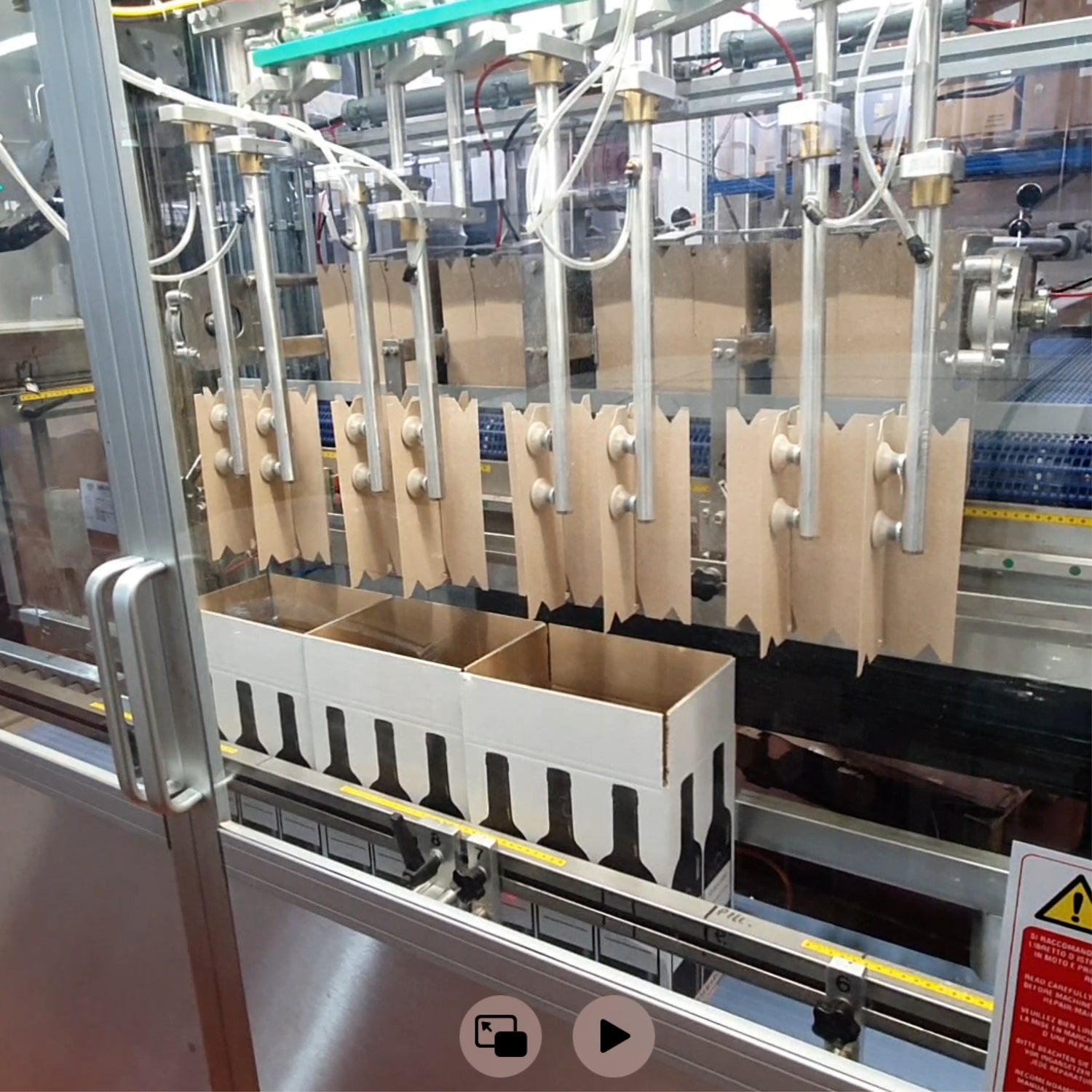

• A carriage with suckers picks up, opens and inserts divisions into cases (this system enables to maintain the division blocked and squared up to its insertion inside the case).
• An automatic centering basket enables an easy insertion of the division inside the case (only for a division insertion into an empty case).
• “Touch-screen” display to manage machine functions, the changeover and to visualize possible anomalies.
• Machine complete of electrical installation, electrical panel and safety guards.
• Machine managed by a PLC Siemens S7.
